Portal mechanical punch press 2-piece tin can making equipment

Portal mechanical punch press 2-piece tin can making equipment
Portal mechanical punch press 2-piece tin can making equipment
Send Inquiry
Product Code : 08
Brand Name : thinklink
Product Description

Equipment introduction

Asparagus cover CNC punch press production line is by board automatic feeding machine, feeding machine, automatic numerical control platform, punch, die, collect machine and a series of synchronous mechanism, a conveying belt and smartphone operating system composed of intelligent automatic production line. Equipment with high efficiency, low failure, intelligence and artificial safety as the main features. According to the pot type can be produced to two cans of various kinds of tensile cans, three cans of top and bottom cover based on a variety of cover, the main products are as follows:


Two stretch cans: all kinds of round drawing cans, such as 538, 668, 7110, 840, 843, 846, 854, 948, etc..

Various special-shaped stretching cans: such as angle 5A square jar (125g), oval two cans (601, 604), cigarette drawing rolls round cans, etc..

Three piece can: all kinds of round cover, such as 1-5L paint pot bottom cover, the ring cover, the center cover, 18-20L flower blue barrel bottom cover, the upper cover;

Special shaped bottom cover: such as 1-5L square cover, lunch jar bottom cover, angle 5A square cover, T shaped pot lid cover, asparagus pot cover, aluminum film easy to tear cover, oval cover, etc..


Working principle

1. The custom size materials into feeder feeding active positioning table and a good start lifting mechanism materials is arranged in the vacuum chuck can be sucked into the position.

2 vacuum suction: the material sucked up and transported to the feeding table.

3. CNC starting clamp will clamp material and according to a preset path running, pressure machine and CNC coordinated action the material punching molding, followed by blowing to the conveyor belt to complete the follow-up process.

4 per flush a piece of material, automatic clamp release, the waste collection agencies to collect waste.


Technical parameter

production efficiency Single mode: 880-120 parts /min
supply voltage Three phase, 380V
Mold number 1-2 sets (Longmen red can be customized multi set)
Die life More than 10 million times
Material range 0.14mm-0.40mm
Adaptive range 40-166
control model Taking PLC as the center control components, use the touch screen as man-machine interface, the parameters realize digital control and supporting automatic diagnosis and tele diagnosis function

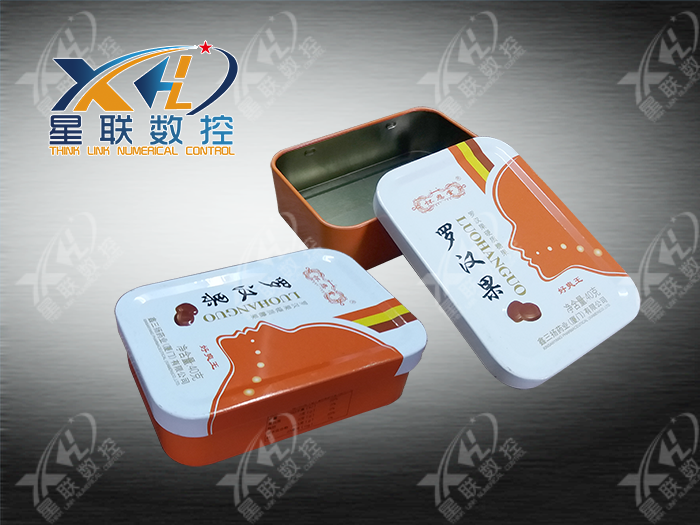

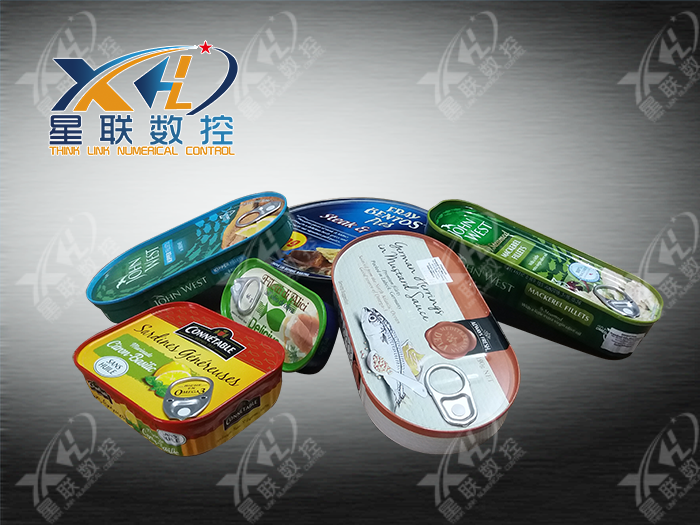

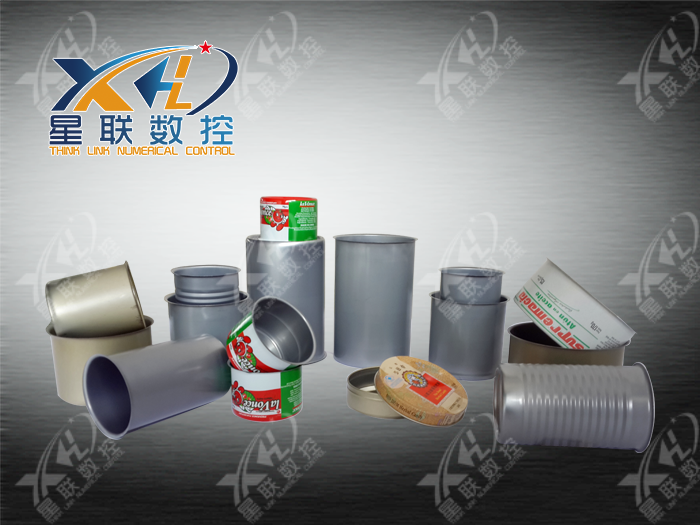

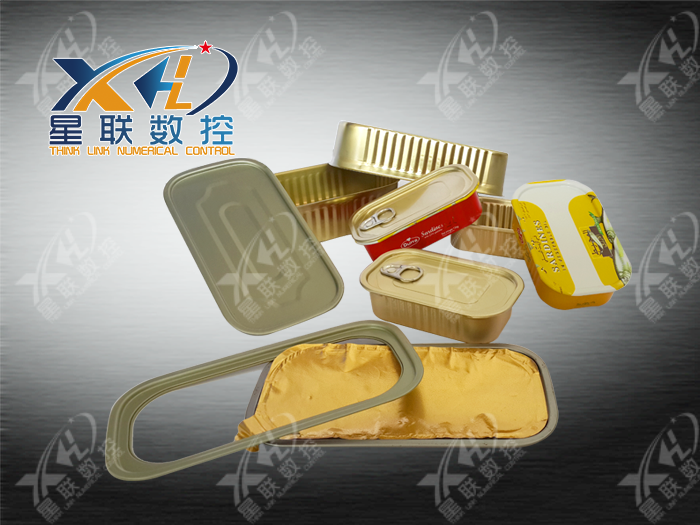

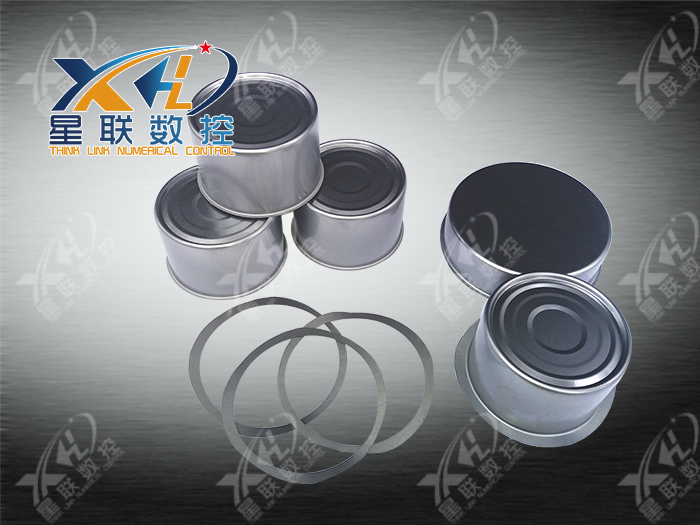

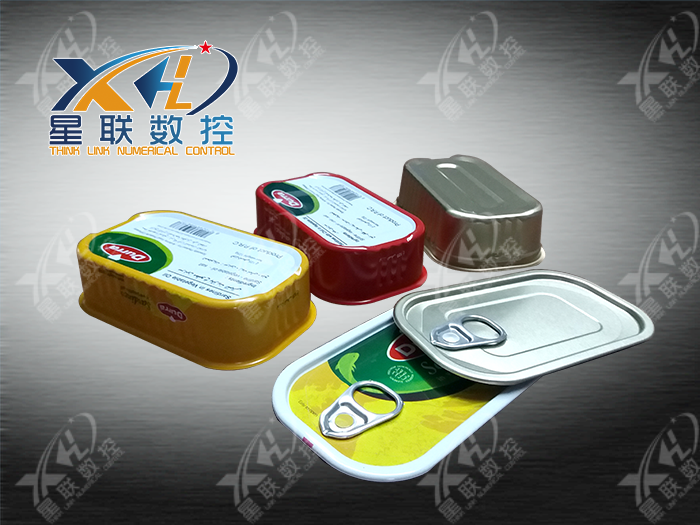

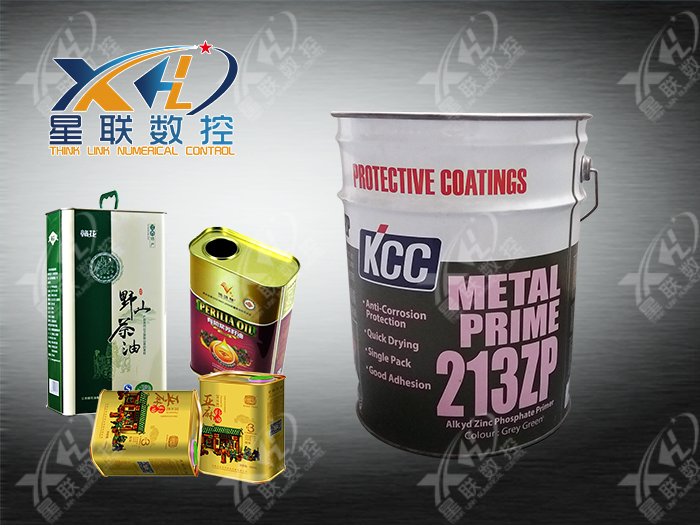

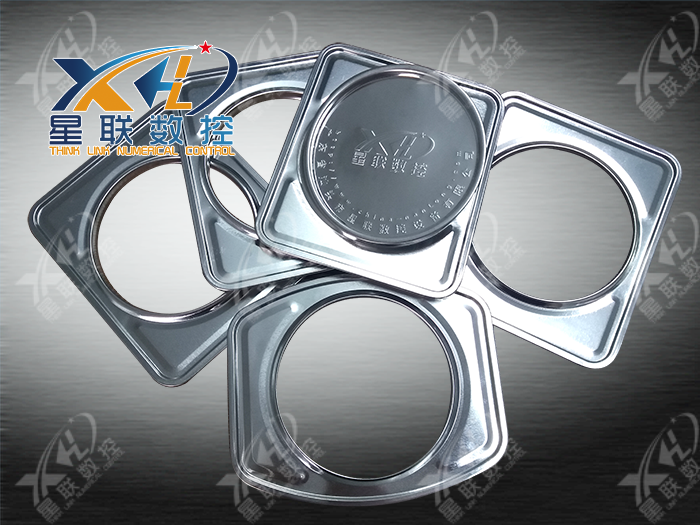

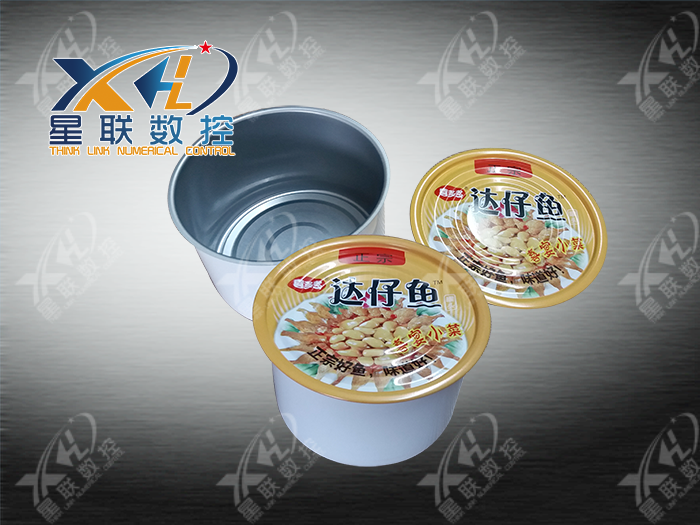

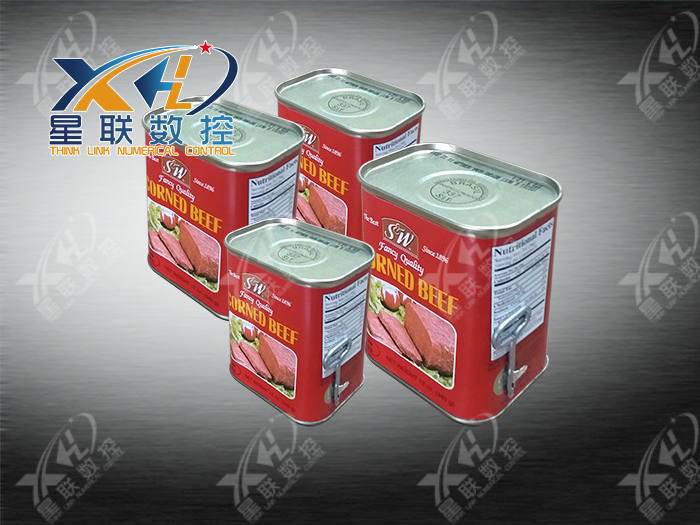

Product sample
